Description
LTE-400
This kit provides everything you need to secure a small home, office, warehouse, or retail space. At its core is the award-winning Chuango LTE-400 Security Hub, featuring built-in Wi-Fi and optional 4G wireless communication. Designed for easy DIY installation, the system can be expanded anytime to suit your growing security needs.
Stay connected with the free mobile app (available for Apple and Android), which can be shared with up to 10 users—family, friends, or staff. The system also supports voice control via Amazon
Alexa and Google Home for added convenience.
Hub – Technical Specifications
Model No.H4-LTE
Power Supply DC 12V 500mA
Battery3.7V 2200mAh 18650 rechargeable Lithium battery
Wi-FiIEEE 802.11b/g/n
LTE Frequency FDD-LTE B1/B3/B5/B7/B8/B20 (EU), B1/B3/B5/B7/B28 (AU)
Standby Current<180mA
Alarm Current<350mA
Internal Siren Volume93dB
Supported Accessories10 Remote Controls, 50 Sensors
Wireless Radio Frequency433.92MHz or 315MHz
Casing Materials ABS Plastic + PC
Operating Condition
Temperature0°C~50°C
Relative Humidity<80% (non-condensing)
Hub Dimensions160 x 160 x 45 mm (L x W x H)

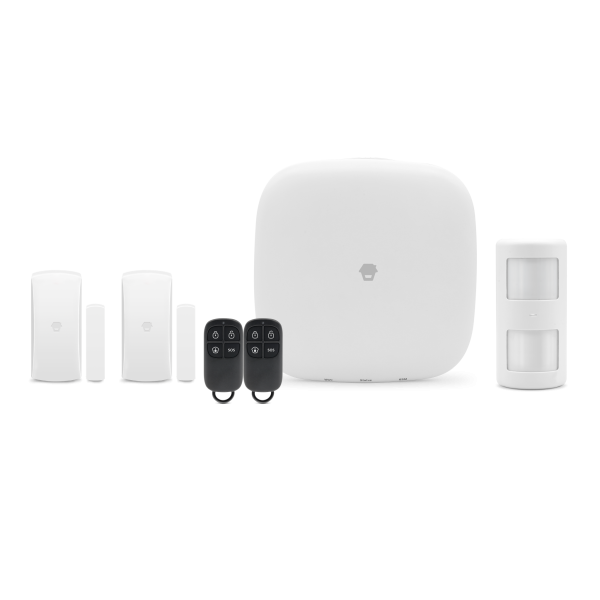

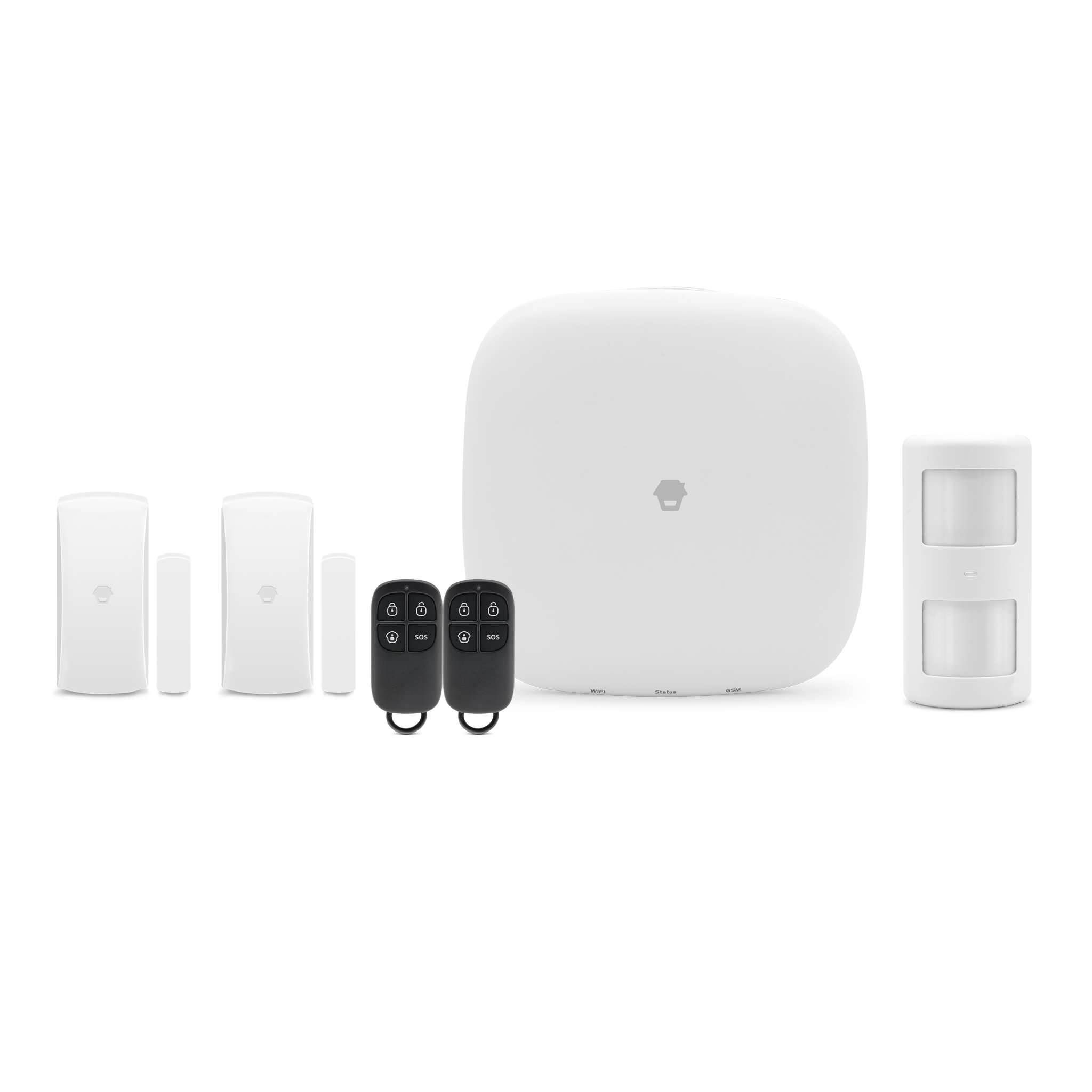

Kit includes:
1 × LTE-400 Security Hub
1 × Wireless Motion Sensor
2 × Wireless Door/Window Sensors
2 × Keychain Remote Controls
Download Pdf: LTE-400 flyer
